AC charging station 7KW
¥133.10
Summary

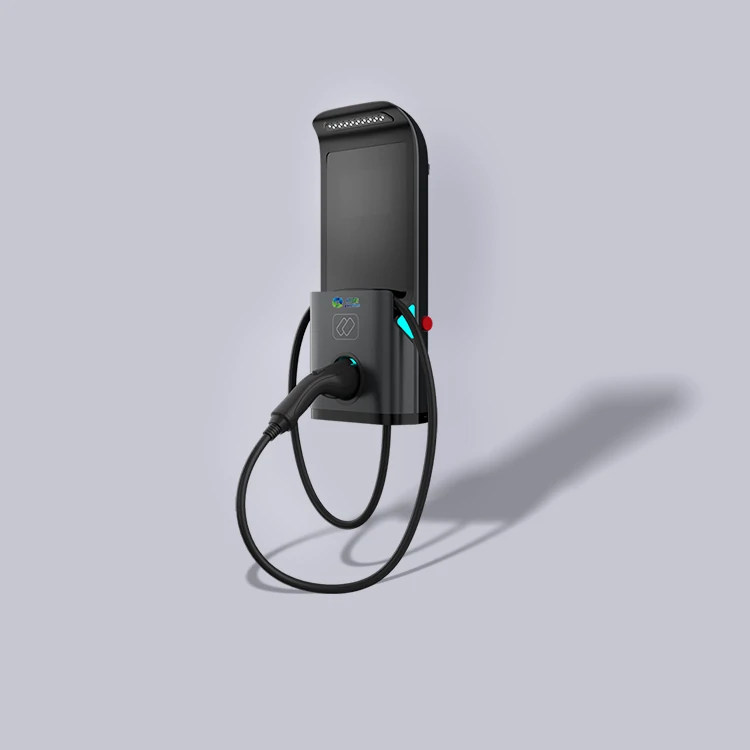

The SCP-J007 EV charging station features a main enclosure manufactured using ABS injection molding, with a high-gloss mirror finish that provides high mechanical strength and excellent electromagnetic interference (EMI) resistance. Its protection rating reaches IP54, making it suitable for outdoor installation. The charging station’s mounting column is fabricated from cold-rolled steel sheet metal and treated with an anti-corrosive powder coating, offering high temperature resistance and corrosion resistance.
Charging operations are user-friendly—users can initiate charging either by swiping an IC card or by scanning a QR code via a mobile app. The charging connector complies with the Chinese national standard (GB/T), ensuring broad compatibility with various vehicle models equipped with standard GB charging ports. The unit also incorporates comprehensive safety protections, including lightning surge protection, short-circuit protection, leakage current protection, and overload protection.
Installation options include floor-standing or wall-mounted configurations, depending on site conditions. It is widely deployed in parking lots, underground garages, municipal public parking areas, and similar locations.
1 Product Features
1.1 The entire enclosure is engineered for high temperature and corrosion resistance, with strong EMI immunity. Surface powder coating enhances durability, and the IP54 protection rating ensures reliable outdoor use.
1.2 An 8-inch LCD touch screen (800×600 resolution) is installed on the front panel, offering intuitive operation and an excellent user interface experience.
1.3 Flexible charging initiation methods: users can charge via IC card swipe or QR code scan. Multiple charging modes are supported, including automatic full-charge, time-based charging, and amount-based charging.
1.4 Equipped with a national-standard (GB/T) charging plug, ensuring wide compatibility with all vehicles featuring standard GB charging ports.
1.5 Built-in multiple communication interfaces, including RS485, Ethernet, GPRS, and 4G.
1.6 Comprehensive safety protections: undervoltage protection, overcurrent protection, leakage current protection, lightning/surge protection, and emergency stop functionality.
2 Operating Environment
2.1 Operating Environment
Operating ambient temperature: –20 °C to +55 °C
Relative humidity: 5% to 95% (non-condensing)
Operating altitude: ≤ 2000 meters
Protection rating: IP54
Cooling method: Natural convection cooling
2.2 Operating Conditions
Rated input voltage: 220 V ± 10%
Rated power: 7 kW
Rated frequency: 50 Hz ± 1 Hz
Output current: 32 A
3 Feature Introduction
3.1 Technical Specifications
| Project | Technical indicators |
|---|---|
| Rated Power | 7KW |
| Operating Voltage | AC 220V |
| Operating Voltage Fluctuation | 220V±10% |
| Rated Output Current | 32A |
| Operating Frequency | 50Hz±1Hz |
| IP Protection Rating | IP54 (Outdoor) |
| Operating Temperature | -20℃~+50℃ |
| Relative Humidity | 5%--95% |
| Operating Altitude | ≤2000m |
| Protection Function | Equipped with leakage protection, lightning protection, short circuit protection, overvoltage protection, undervoltage protection, overcurrent protection, etc. |
| Project | Technical indicators |
|---|---|
| Housing | The housing is treated with corrosion-resistant spray plastic, not only aesthetically pleasing but also highly durable; protection rating reaches IP54, suitable for outdoor environmental use |
| LCD Screen | The panel is equipped with an 8-inch LCD touchscreen, 800*600 resolution, easy to operate, and offers good interactivity |
| Charging Method | Supports various charging methods such as automatic stop when full, charging by power consumption, and charging by amount |
| Charging Gun | Uses national standard charging plugs, compatible with various national standard electric vehicle interfaces, strong versatility |
| Card Charging | Managed by M1 card swiping, precise metering by smart electricity meters, real-time monitoring of charger operation status via LCD and backend management system |
| Communication | The charger integrates RS485/232 serial communication, Ethernet port wired communication, and wireless communication such as 4G/GPRS |
| Protection | Equipped with leakage protection, lightning protection, short circuit protection, overvoltage protection, undervoltage protection, and overcurrent protection |
| Application Scenario | Widely used in community and centralized parking lot areas for new energy vehicle charging stations |
